Our surface pumps perfectly encapsulate client requirements and exceed expectations and are the first choice for many industries and sectors. We strive to achieve standards of quality and maintenance. Our surface pumps are widely sought after and used.

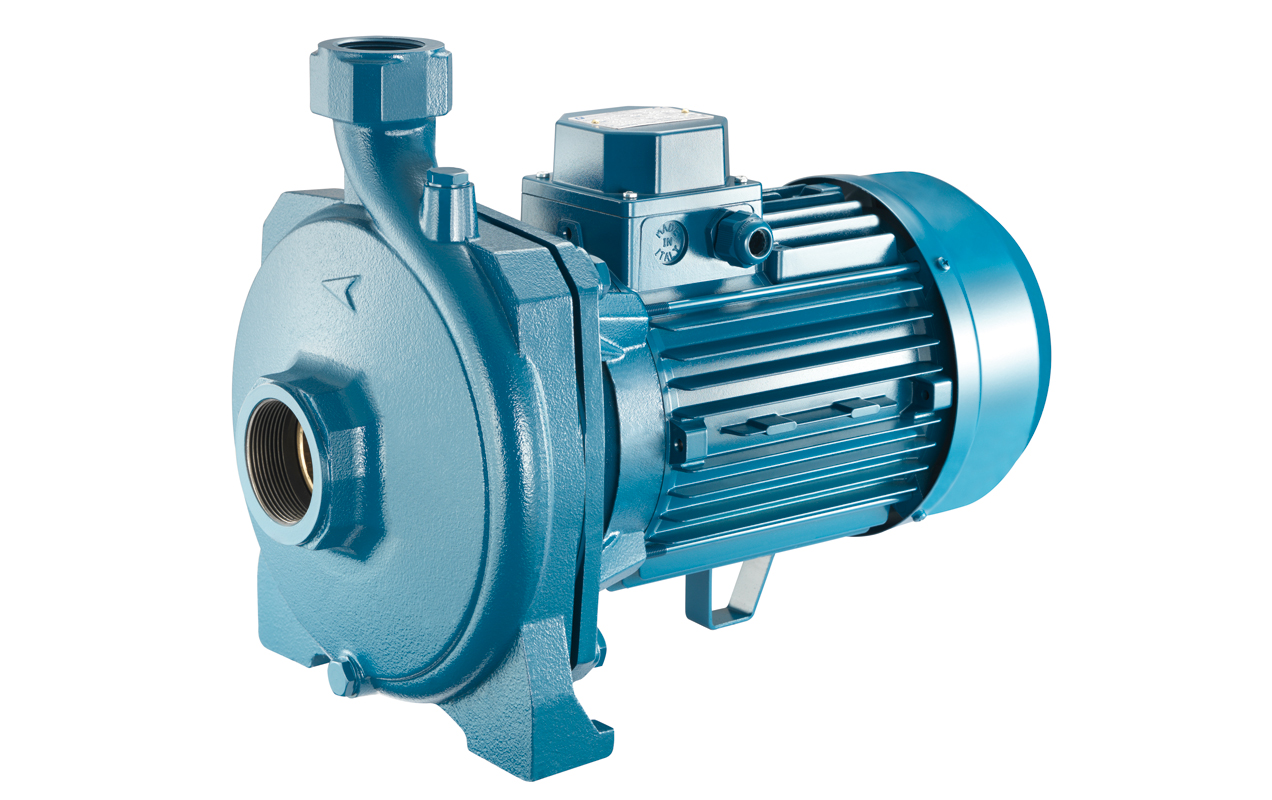

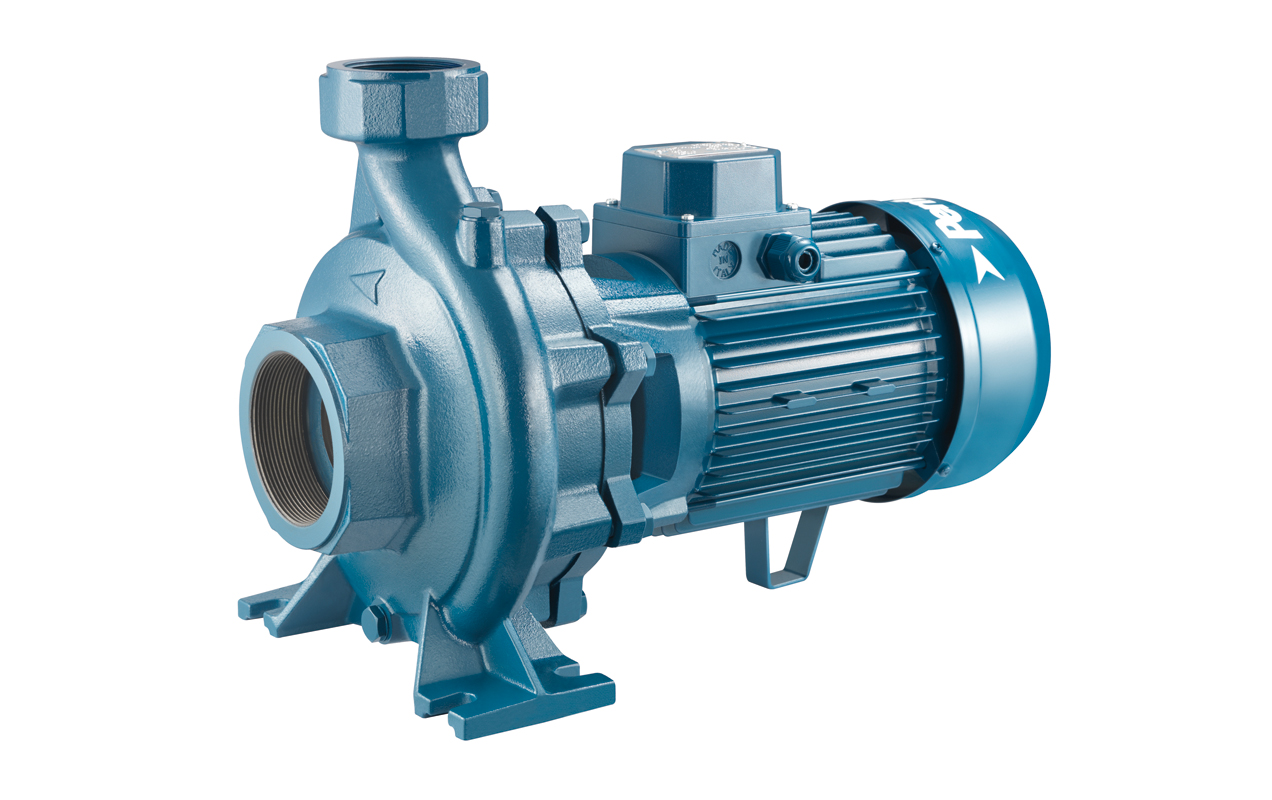

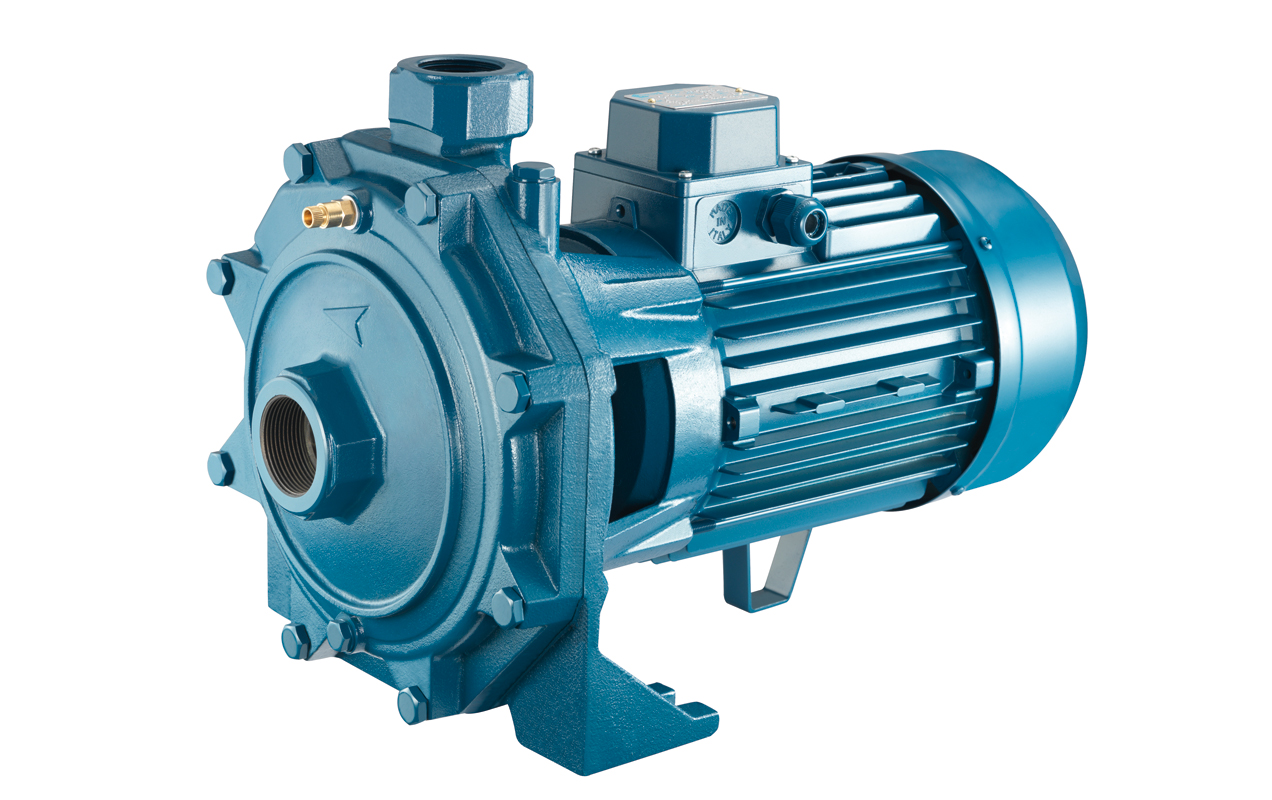

Centrifugal pump that combine medium head with medium-high delivery; ideal for sprinkle irrigation and in applications where quiet operations are requested and a slight pressure change as the delivery changes.
Pump Body : Cast Iron
Motor Bracket : Cast Iron
Impeller : Brass Cast Iron
Mechanical Seal : Ceramic-graphite
Motor Shaft : Stainless Steel (AISI 303)
Liquid Temperature : 0 - 90°C
Operating Pressure : max 6 bar
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,

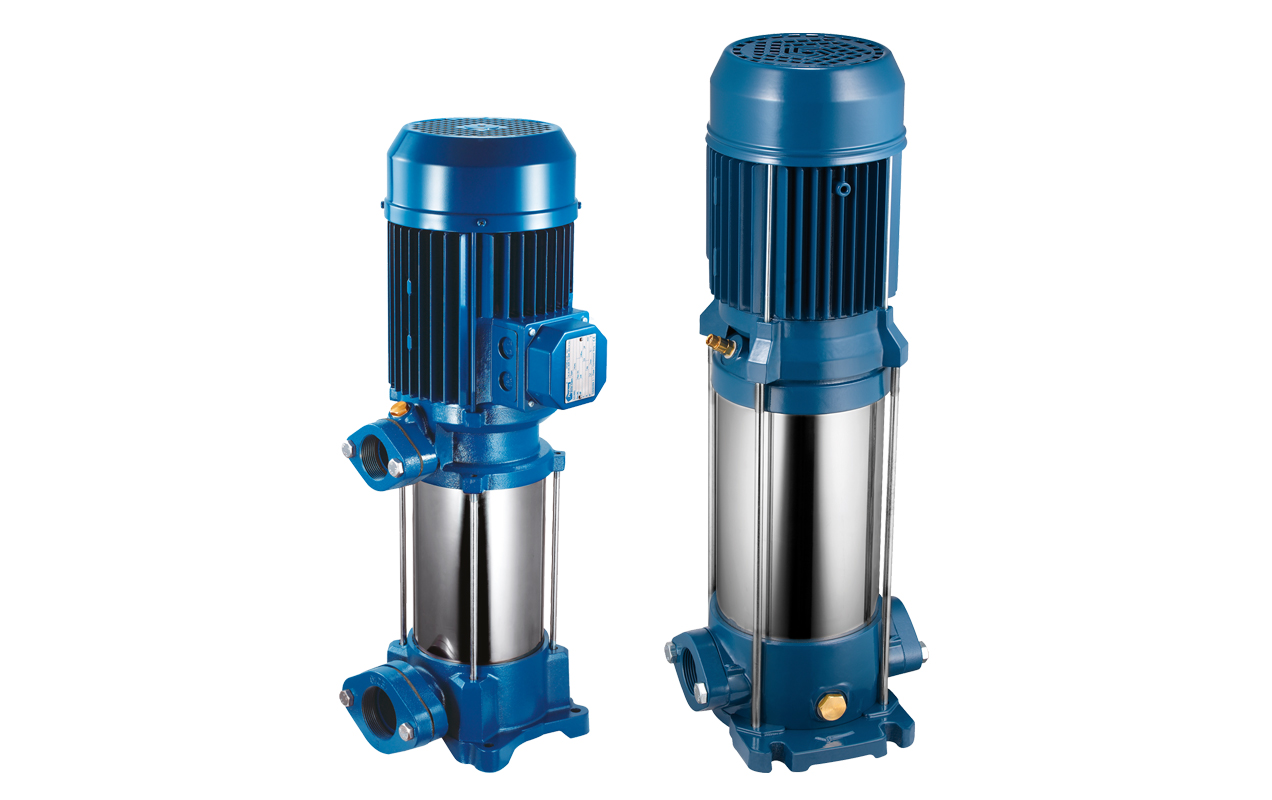

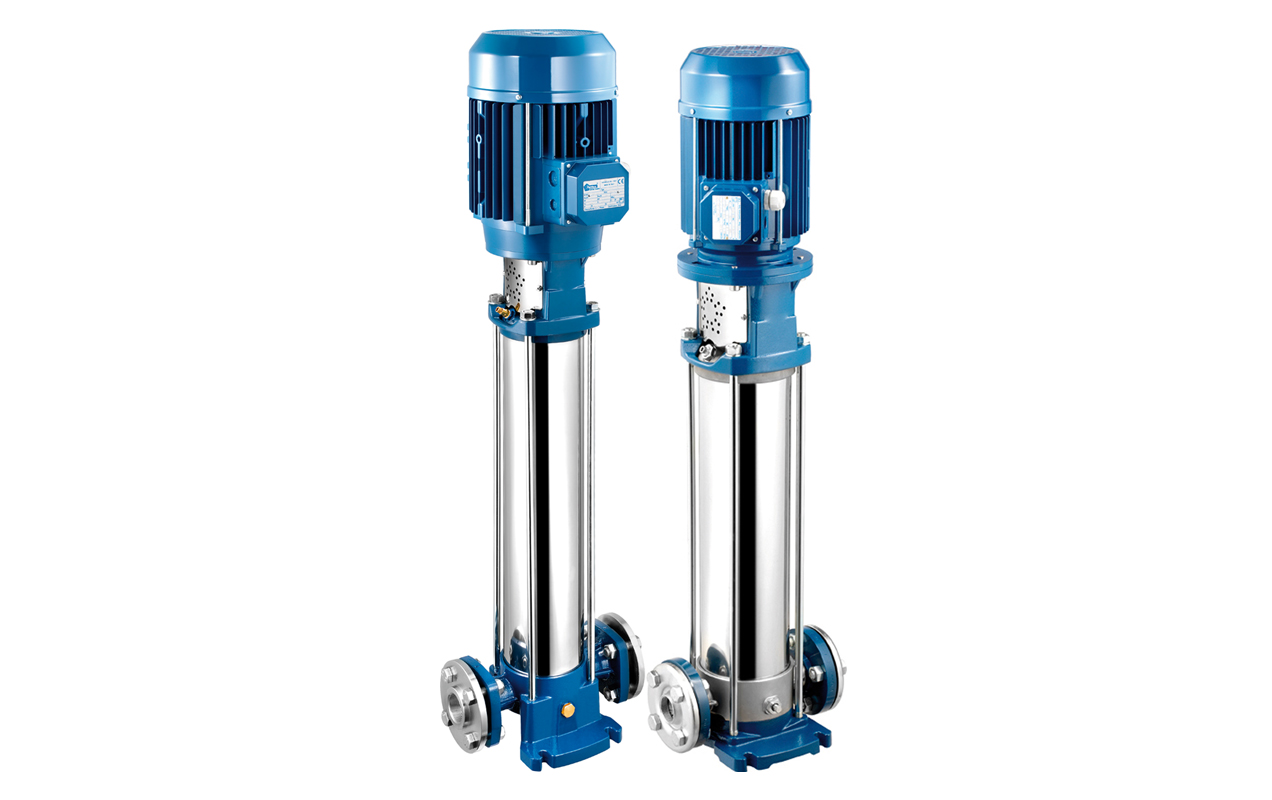

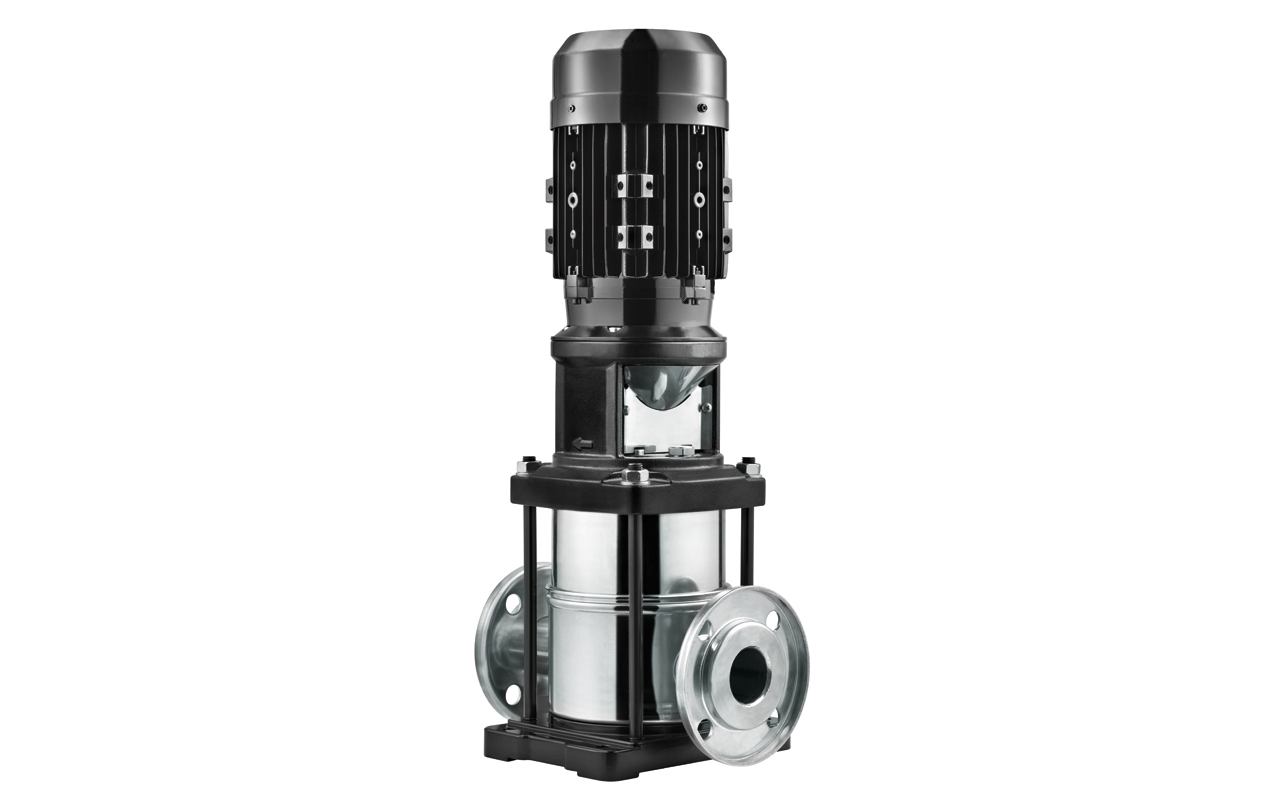

Stainless steel multistage vertical pumps. For non-loaded clean fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, food industry, heating and air conditioning, washing system.
Pump Body : Cast Iron
Motor Bracket : Cast Iron
Impelle, Diffuser : Stainless steel
Shell, Motor Shaft : Stainless Steel AISI 304
Mechanical Seal : Ceramic graphite ≤ 6 impellers / Graphite-silicon carbide ≥ 7 impellers
Intermediate shaft guiding stage bush : Ceramic-tungsten carbide
Ambient Temperature : max 40°C
Liquid Temperature : +5 ÷ +35°C
Max operating pressure : 8 bar ≤ 6 impellers; 14 bar ≥ 7 impellers
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,

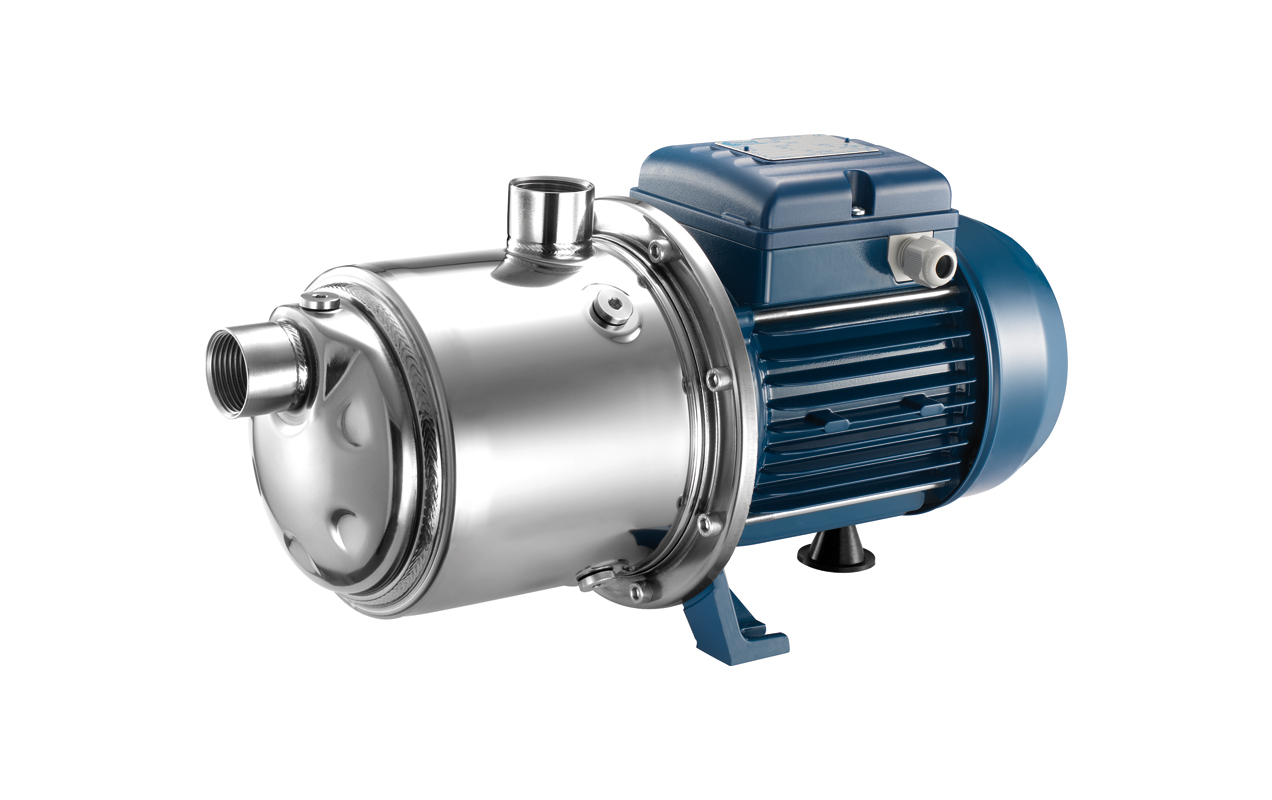

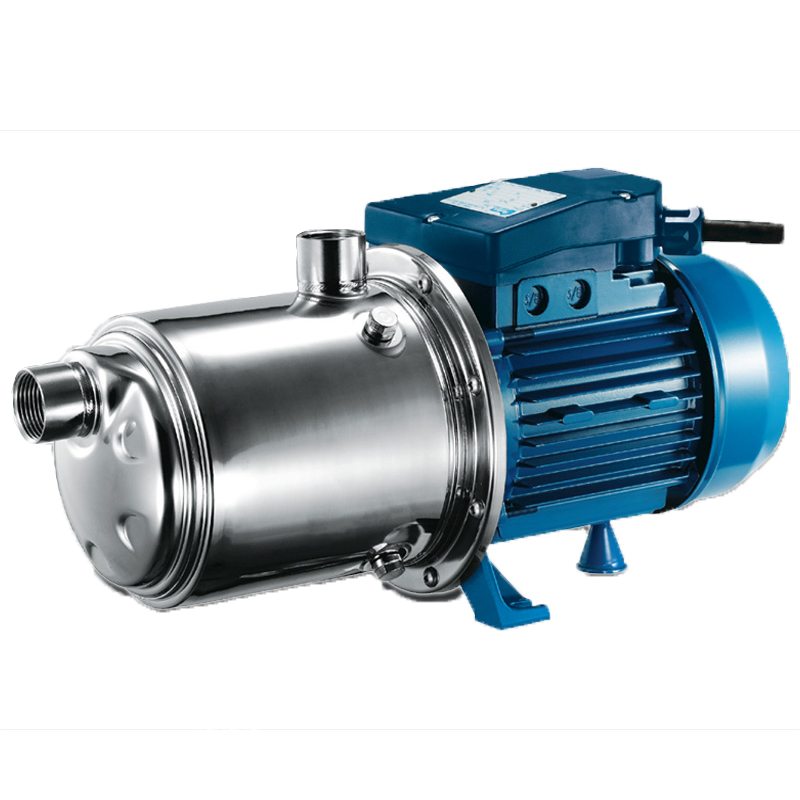

Stainless steel multistage horizontal pumps. For non-loaded clean fluids: pressurizing system, irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system.
Pump Body : Stainless Steel AISI 304
Motor Bracket : Aluminium/Stainless Steel AISI 304
Impeller : Stainless Steel AISI 304
Mechanical Seal : Ceramic graphite ≤ 6 impellers / Graphite silicone carbide ≥ 7 impellers
Motor Shaft : Stainless Steel AISI 303
Liquid Temperature : -5 ÷ +135°C
Operating Pressure : max 8.5 bar
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,

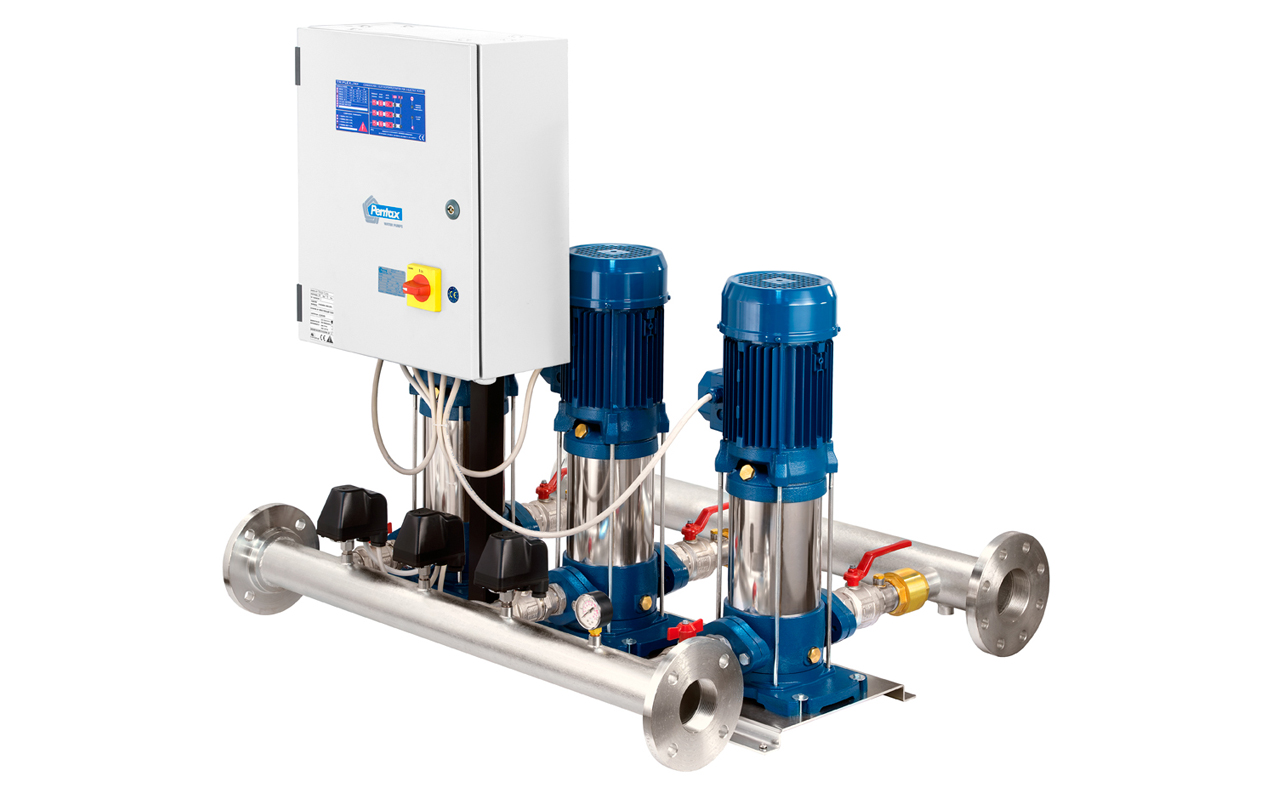

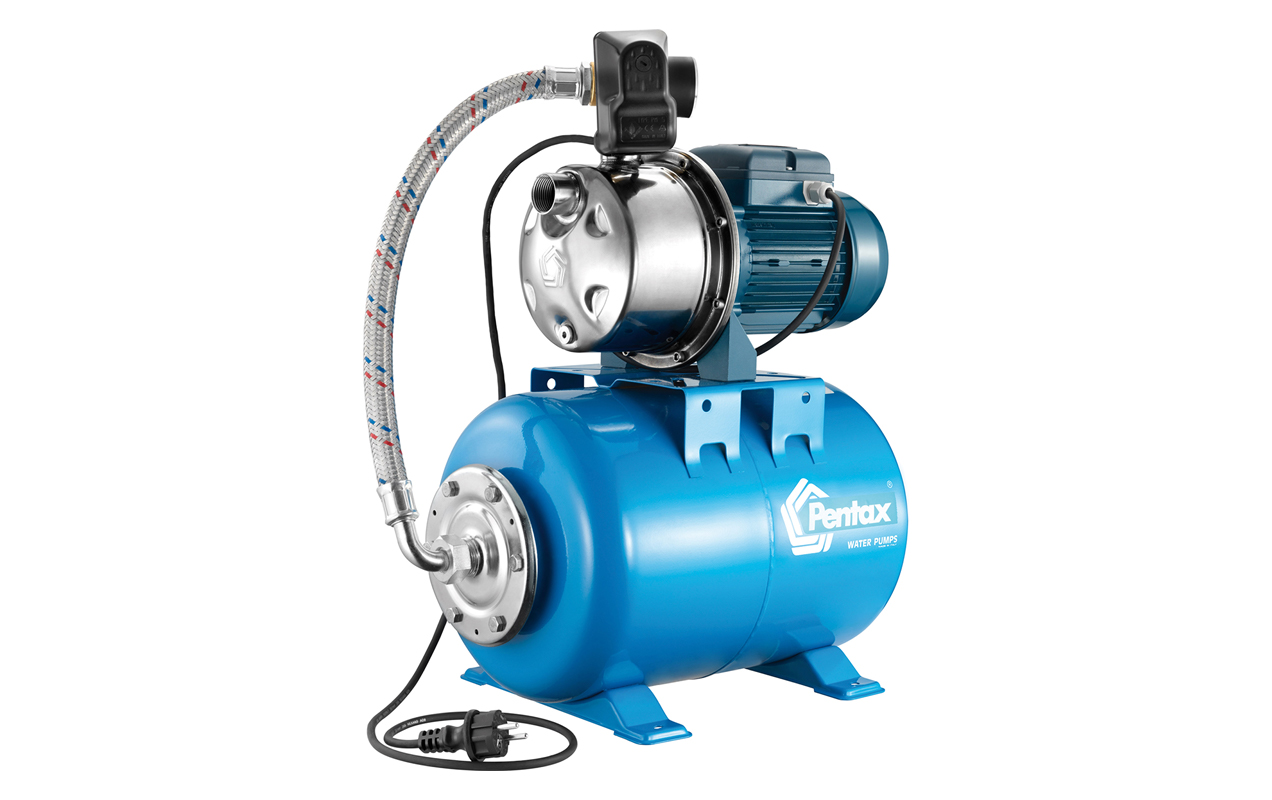

Automatic working pressure systems build-up with centrifugal or self priming electropumps. Each set, ready for the installation, is made by an electropump, a pre-rated and adjustable pressure switch, pressure guage, connector (and eventually a flexible hose with s.s sheath), membrane tank and cable with plug. The set specification and performances are related to the adapted electropump, tank capacity and pressure switch rating.
Adjustable or variable speed pumps have variable-speed drive (VSD) or adjustable-speed drive (ASD) equipment that allows the pump to be adjusted and operated at numerous rates. This is critical for procedures that require a pump or fan to modify its flow during operation owing to specific operating conditions or to save energy.
Pumps that are designed to run and operate continuously without causing undue wear on the pump are known as continuous duty pumps.

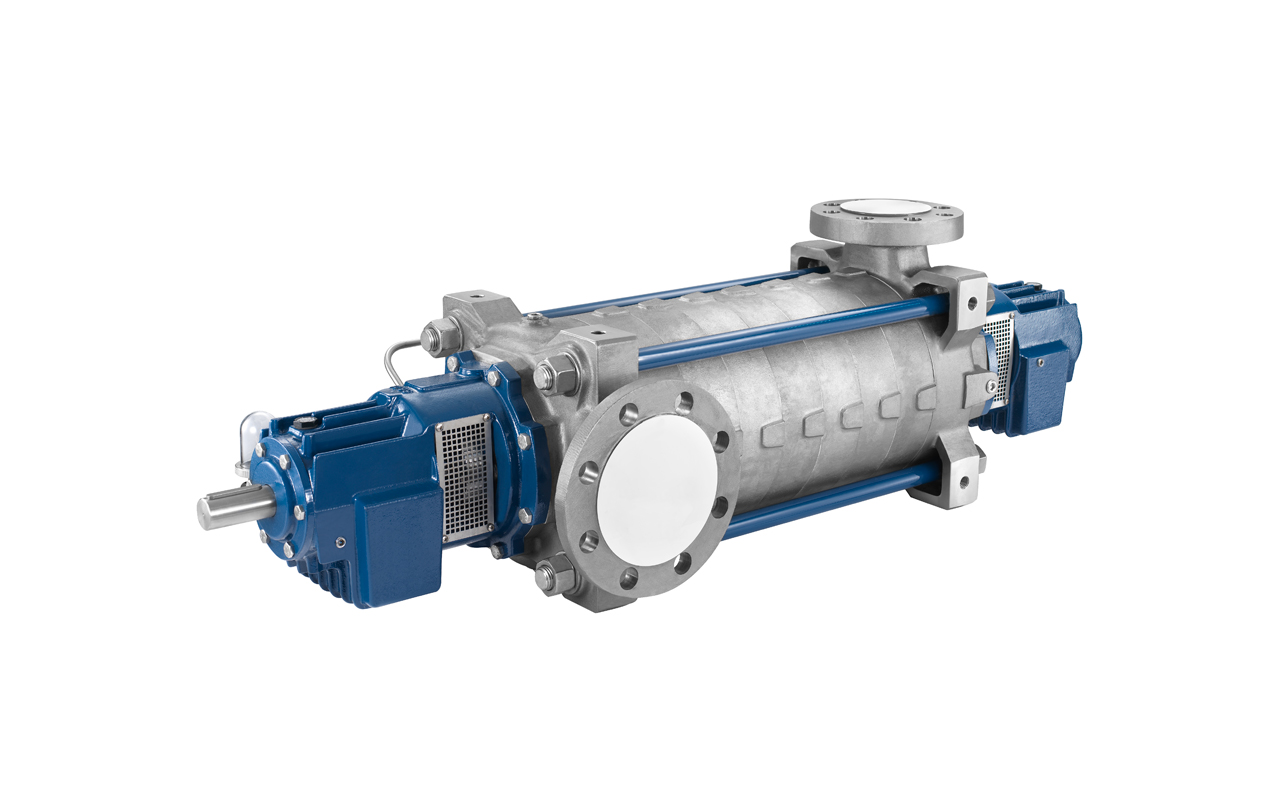

Multi-stage pumps transport compressed fluid from an initial stage to subsequent chambers or stages of pressurization, allowing for higher pressure levels than single-stage pumping. A pressure gage is usually found on both single-stage and multi-stage pumps.
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,

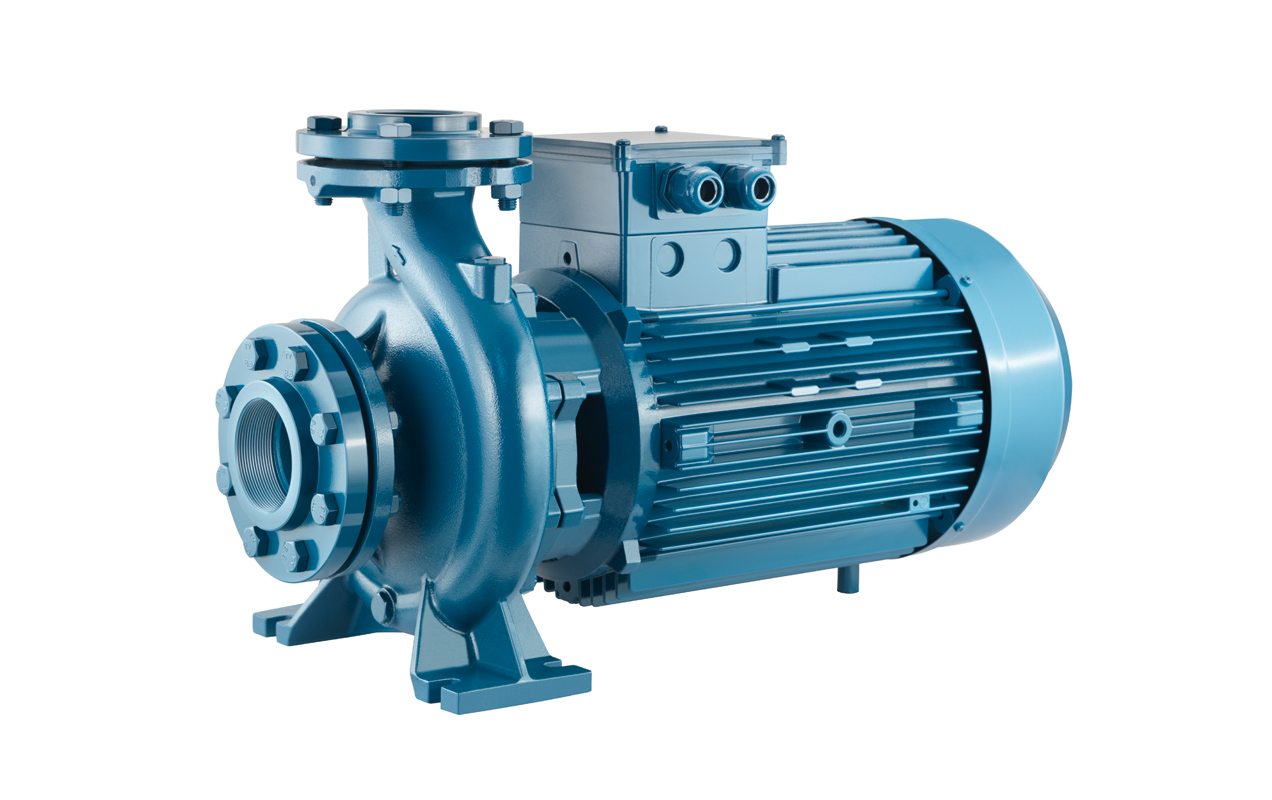

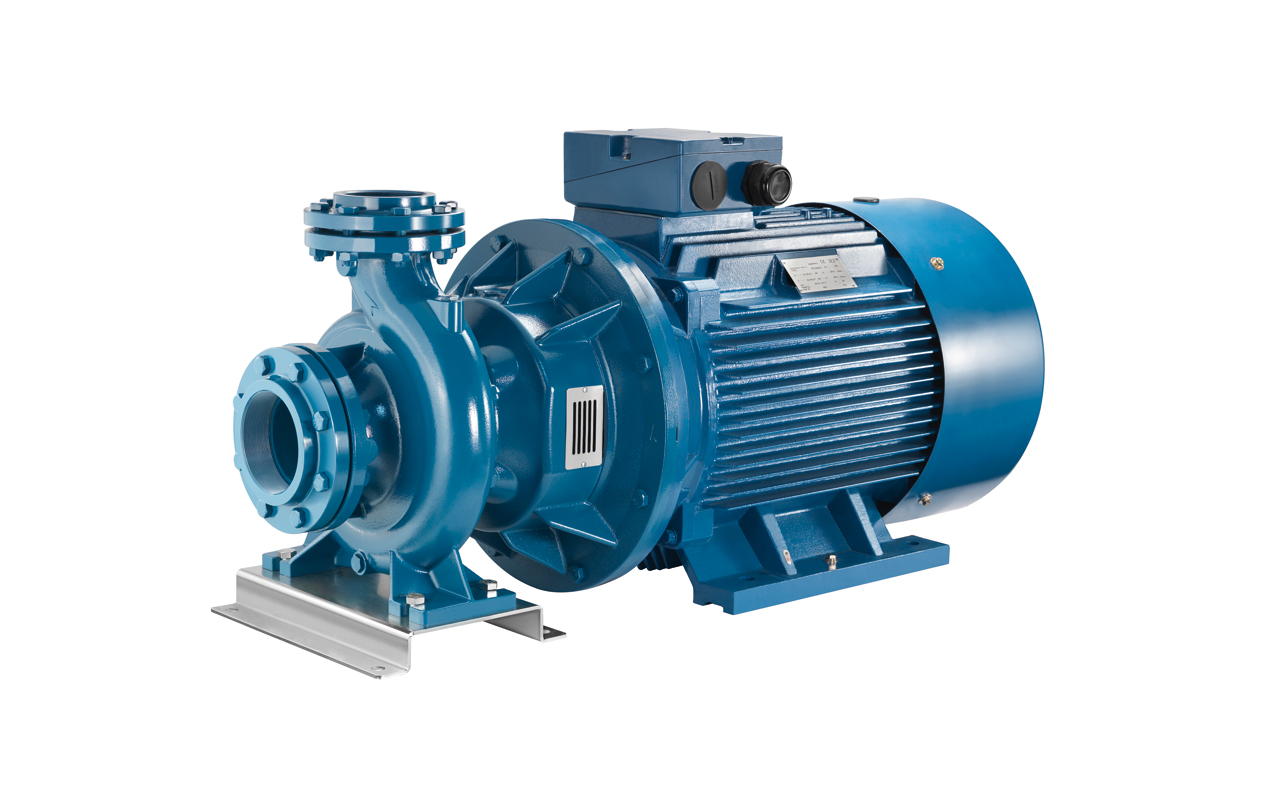

Monobloc horizontal centrifugal pump, constructed to EN 733 standards; widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.
Pump Body : Cast Iron
Seal Plate : Cast Iron
Impeller : cast iron, bronze or stainless steel
Mechanical Seal : Ceramic/Graphite/NBR
Pump Shaft Extension : stainless steel AISI 304
Liquid Temperature : -10 ÷ +90 °C
Operating Pressure : max 10 bar
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,
Electrical self priming pump for pools with large pre-filter which, together with its excellent hydraulic performance, gives a very large filtering capacity. Filter with a transparent, polycarbonate lid that easily allows inspection of the interior of the prefilter sieve. No possible electrical contact with the water as no part of the motor is open to it. It includes a standard key for effortless opening of the pre-filter lid.
Impeller : Noryl®
Possible Connections : Female threat of 2" or Connection for PVC pipe Ø 63 to glue
echanical Seal : stainless steel AISI 316
Motor Shaft : stainless steel AISI 316
Bolts : stainless steel AISI 304
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, ipsum dolor sit amet,
